 Igloo 5761 Series |
 |
|
|
|
| |
|
| |
Features
 High Quality Aluminum Alloy
High Fin Density
PWM Version: Fan speed increase ith the increase of CPU loading
Constant Fan Speed Version: The best price-performance
Weight / noise performance
Easy to install
|
| |
| Specifications |
| Model |
Igloo 5761 Silent |
Igloo 5761 PWM |
| Socket Type |
Intel LGA1150/1155/1156/775
AMD FM1, FM2, AM2, AM2+, AM3, AM3+ |
| CPU Compatibility |
Intel LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
Intel LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Intel LGA775:
up tp 105W CPU
AMD:
FM1/FM2 A Series CPU (100W)
A4-3400, A6-3670K, A8-3870K (100W)
Phenom™ II X2, X3, X4, and X6 Processors (140W)
Phenom™ X3, X4 Cores Processors (125W)
Athlon™ II X2, X3, X4 Processor (95W)
Bulldozer FX Series Processor (125W) |

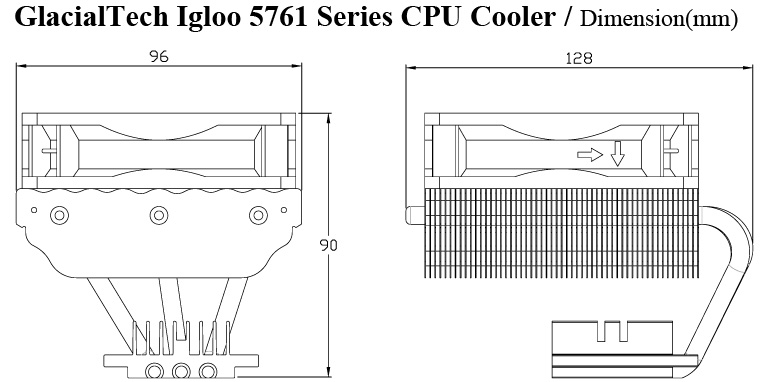

| Dimension (mm) |
96 (W)× 128 (L)× 90 (H) |
| Weight (grams) |
350 |
| Fan |
Bearing Type |
Ultra Entering Bearing |
| Rated Voltage |
DC 12 V |
| Dimension (mm) |
92 x 92 x 25 |
| MTBF (hour/25°C ) |
50,000 hours / 25°C |
| Speed(RPM) |
1200 |
PWM 800(±300 RPM)~ 2300(±10%) |
| Airflow (CFM) |
34 |
43 (max.) |
| Noise (dBA) |
20 |
30 (max.) |
| Safety |
UL, CE |
| Interface Material |
High Efficiency Thermal Compound |
|
| |
| |
| |
|
|
|
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
