Igloo H46 Series |
|
|
|
|
|
|
|
Features
Four D6 heat-pipes
12 cm fan
Heat-pipes contact directly
Multi-platform
|
|
Specifications |
Model |
Igloo H46 Silent |
Igloo H46 PWM |
Socket Type |
Intel LGA1150/1155/1156/2011/1366/775
AMD FM1, FM2, AM2, AM2+, AM3, AM3+ |
CPU Compatibility |
Intel LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
Intel LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Intel LGA2011:
Intel® Core™ i7-3960X Processor Extreme Edition (130W)
Intel LGA1366:
Intel® Core™ i7 Processor (Up to 130 watts)
Intel LGA775:
up tp 105W CPU
AMD:
FM1/FM2 A Series CPU (100W)
A4-3400, A6-3670K, A8-3870K (100W)
Phenom™ II X2, X3, X4, and X6 Processors (140W)
Phenom™ X3, X4 Cores Processors (125W)
Athlon™ II X2, X3, X4 Processor (95W)
Bulldozer FX Series Processor (125W) |

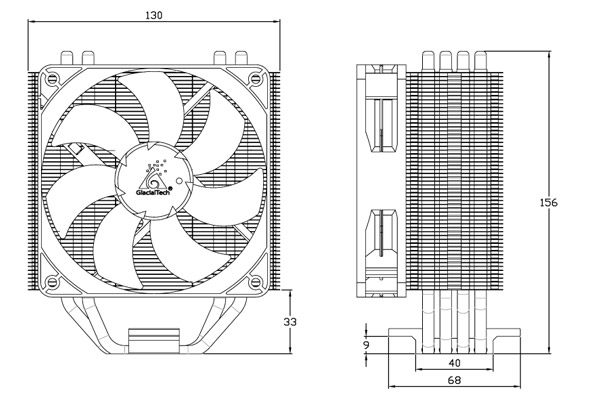

Dimension (mm) |
130 (W)×75 (L)×160(H) |
Weight (grams) |
560 |
Fan |
Bearing Type |
Ultra Entering Bearing |
Rated Voltage |
DC 12V |
MTBF (hour/25°C ) |
50,000 hours / 25°C |
Dimension (mm) |
120 x 120 x 25 |
Speed(RPM) |
1200 |
PWM 800(±300 RPM)~1600(±10%) |
Airflow (CFM) |
39 |
65 (max.) |
Noise (dBA) |
18 |
31 (max.) |
Safety |
UL, CE |
Interface Material |
High Efficiency Thermal Compound |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
