 Product Description |

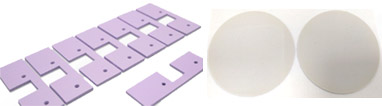

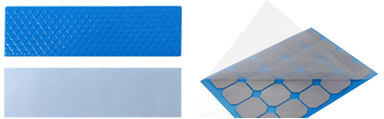

| GlacialTech TCP Series thermal conductive pads' main composition is silicone elastomer, which are applied to fill the gaps between the heating and cooling elements to reduce the temperature difference. The flexibility and elasticity make them suited to the uneven surfaces to enhance the heat dissipation efficiency and life-time of the heat-generating electronic components. |
| |
| Features |
• Widely Thermal Conductivity.
• Good Electrically isolating.
• Naturally sticky.
• Easy to assembly. |
 |
|
| |
| Applications |
• Widely Thermal Conductivity.
• Good Electrically isolating.
• Naturally sticky.
• Easy to assembly. |
 |
|
| |
| Typical Properties |
| Model Name |
TCP030 |
TCP050 |
TCP070 |
TCP080 |
TCP130 |
Test Method |
| Color |
Light Blue |
Purple |
Gray |
Gray |
Gray |
Visual |
Thermal conductivity
(W/m-K) |
3 |
5 |
7 |
8 |
13 |
ASTM D5470 |
| Hardness (Shore 00) |
10~60 |
50~70 |
50~70 |
50~70 |
50~70 |
ASTM D2240 |
| Density (g/cm^3) |
2.98 |
3.1 |
3.4 |
3.5 |
3.5 |
ASTM D792 |
| Temperature Range (℃) |
-40~+200 |
-40~+200 |
-40~+200 |
-40~+200 |
-40~+200 |
- |
Breakdown Voltage
(V/mm) |
>5000 |
>5000 |
>5000 |
>5000 |
>5000 |
ASTM D149 |
| Flame Rating |
UL 94 V-0 |
UL 94 V-0 |
UL 94 V-0 |
UL 94 V-0 |
UL 94 V-0 |
UL 94 |
| Dielectric Constant (MHz) |
12.6 |
12.6 |
12.6 |
12.6 |
12.6 |
ASTM D150 |
Volume Resistivity
(ohm-cm) |
2.5×10^13 |
8.0×10^12 |
6.2×10^11 |
6.8×10^11 |
8.0×10^12 |
ASTM D257 |
| Tensile Strength (Psi) |
32 |
25 |
32 |
32 |
32 |
ASTM D412 |
| thickness (mm) |
0.2~10 |
0.3~10 |
0.3~10 |
0.3~10 |
0.5~10 |
- |
