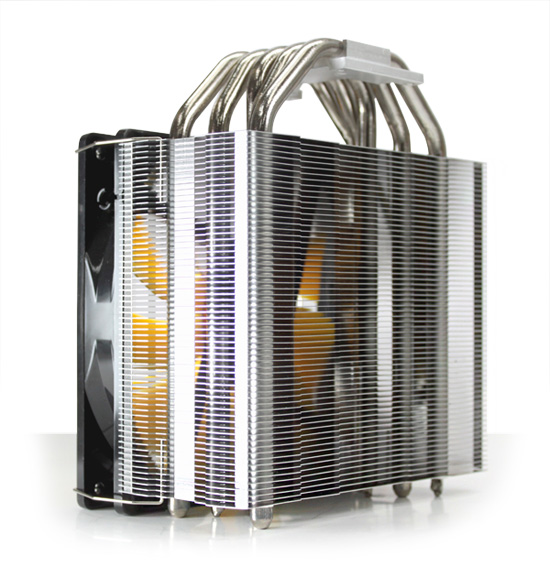

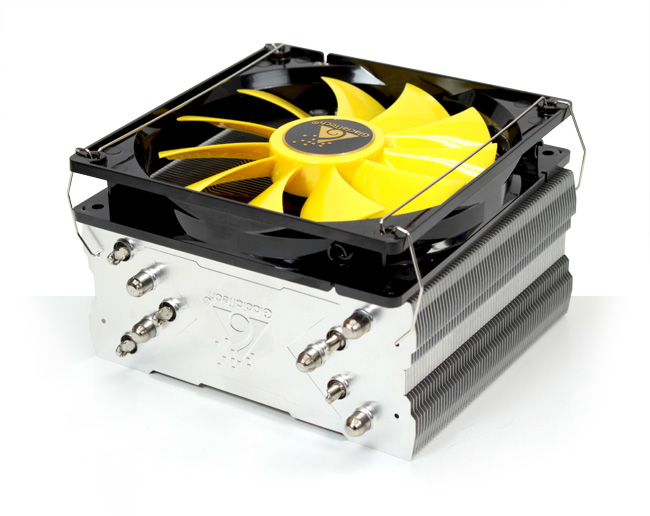

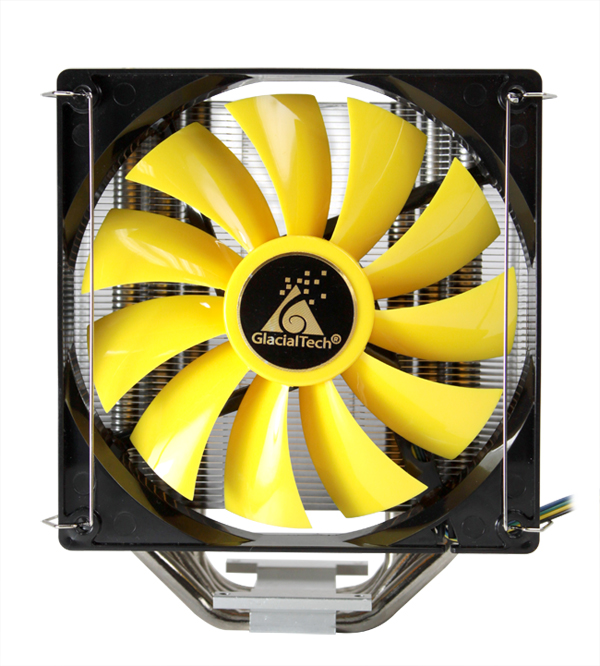

 Igloo H58 PWM |
 |
|
|
|
| |
|
| |
Features

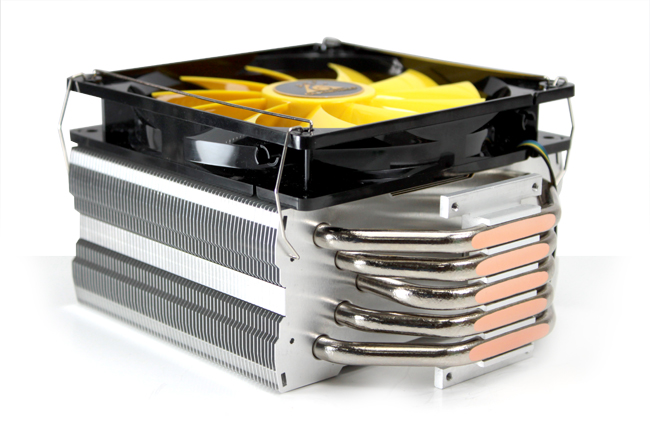

 Five D8 high flux heat-pipes
14 cm high efficiency fan with PWM function
Heat-pipes contact directly
Multi-platform
|
| |
| Specifications |
| Model |
Igloo H58 PWM |
| Socket Type |
Intel LGA1150/1155/1156/2011/1366/775
AMD FM1, FM2, AM2, AM2+, AM3, AM3+ |
| CPU Compatibility |
Intel LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
Intel LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Intel LGA2011:
Intel® Core™ i7-3960X Processor Extreme Edition (130W)
Intel LGA1366:
Intel® Core™ i7 Processor (Up to 130 watts)
Intel LGA775:
up tp 105W CPU
AMD:
FM1/FM2 A Series CPU (100W)
A4-3400, A6-3670K, A8-3870K (100W)
Phenom™ II X2, X3, X4, and X6 Processors (140W)
Phenom™ X3, X4 Cores Processors (125W)
Athlon™ II X2, X3, X4 Processor (95W)
Bulldozer FX Series Processor (125W) |

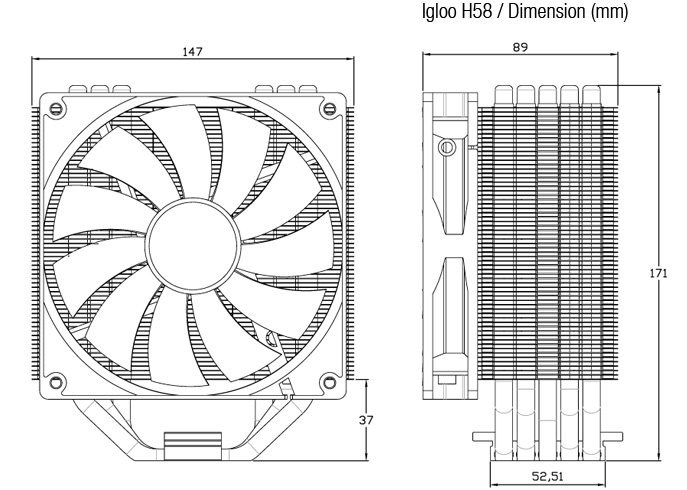

| Dimension (mm) |
147(W)×89 (L)×175(H) |
| Weight (grams) |
840 |
| Fan |
Bearing Type |
Ultra Entering Bearing |
| Rated Voltage |
DC 12V |
| Dimension (mm) |
140 x 140 x 25 |
| MTBF (hour/25°C ) |
50,000 hours / 25°C |
| Speed(RPM) |
PWM 700(±300 RPM)~1400(±10%) |
| Airflow (CFM) |
60 (max.) |
| Noise (dBA) |
33 (max.) |
| Safety |
UL, CE |
| Interface Material |
High Efficiency Thermal Compound |
|
| |
| |
| |
|
|
|
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
