| Multi-platform Solutions / Side Blowing |
|

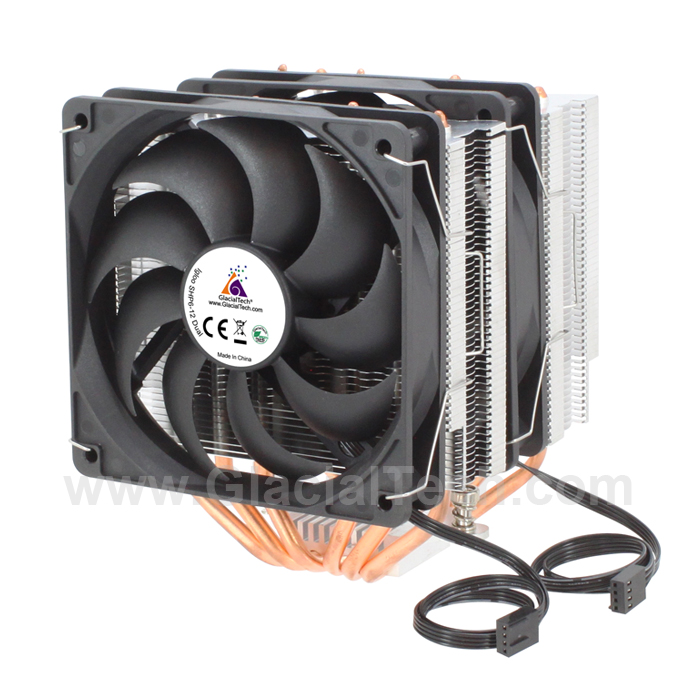

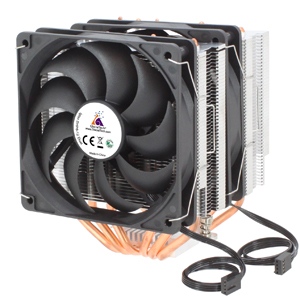

Igloo SHP6-12 Dual |
|
|
|
| |
|
| |
| Features |

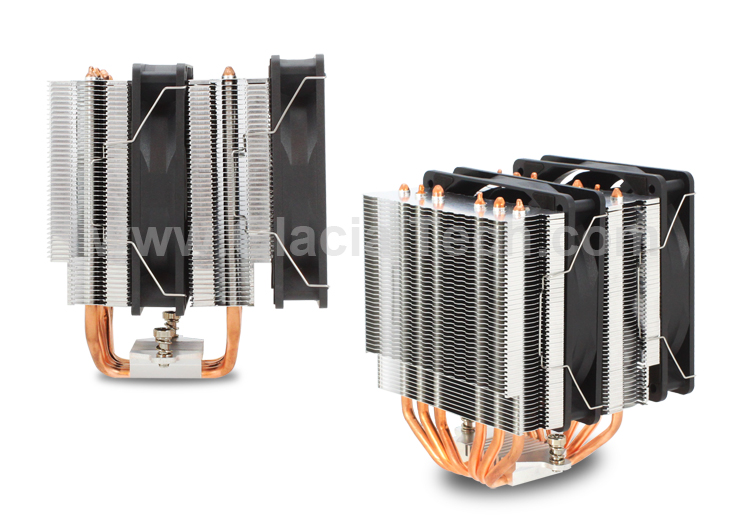

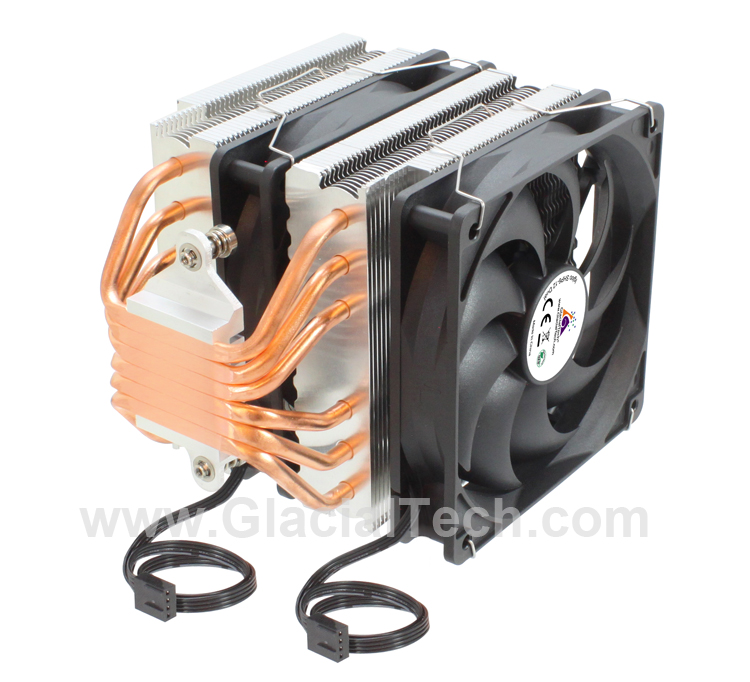

 Six high heat capacity heat-pipes are used.
Heat-pipes contact CPU directly.

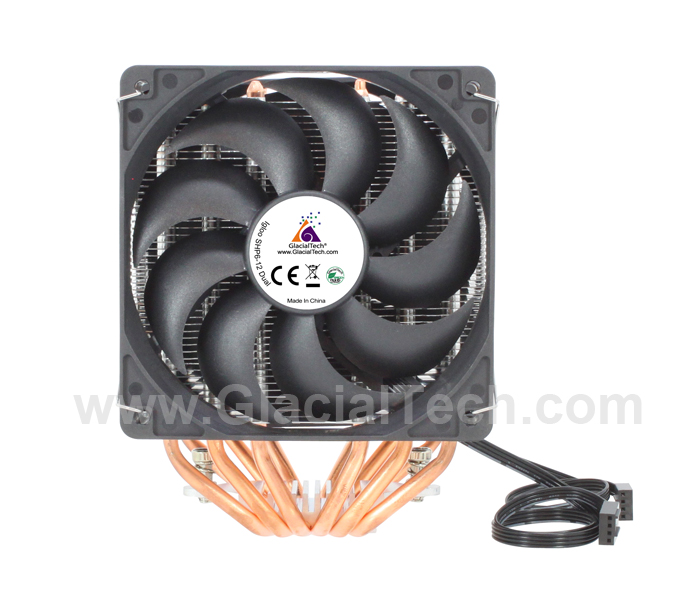

PWM fan is used.
Easy to install. |
| |
| |
| Specifications |
|
| Model Name |
Igloo SHP6-12 Dual |

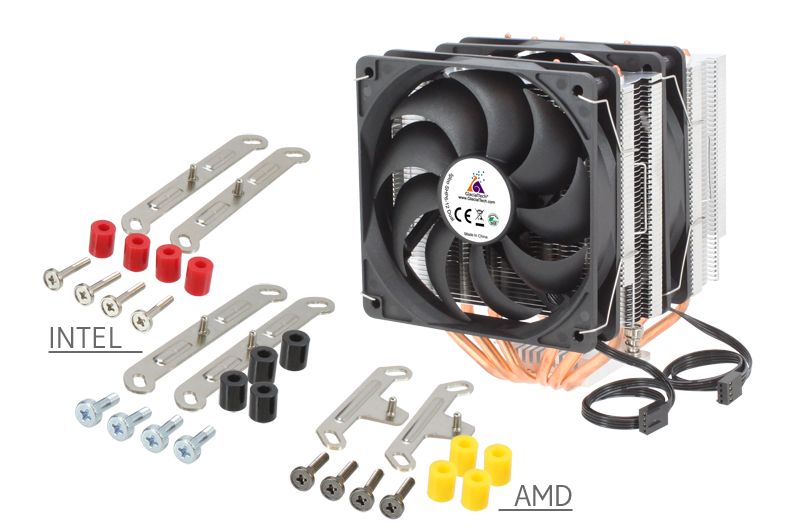

| Socket Type |
Intel LGA1700 / 1200 /115X (up to 219W+)
AMD AM4/AM5 (up to 170W+) |
| Dimension (mm) |
121×129×157 |
| Weight (gram) |
860 |
| Heatsink Material |
ALUMINUM + COPPER |
| Fan |
Bearing Type |
Hydro-Dynamic |
| Rated Voltage |
DC12V |
| Dimension (mm) |
120×120×25 |
| MTBF (hour/25°C) |
40,000 |
| Speed(RPM) |
PWM 900~2500 (4 pin, controllable) |
| Airflow (CFM) |
105 |
| Noise (dBA) |
55 |
| Safety |
CE |
| Cable length(mm) |
300 ±10 |
| Interface Material |
High Efficiency Thermal Compound |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
