| AMD CPU Cooler |
|

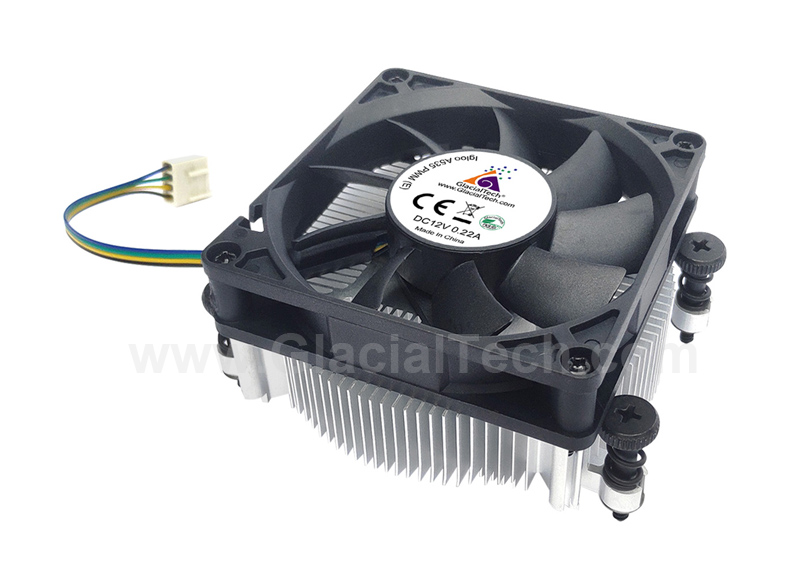

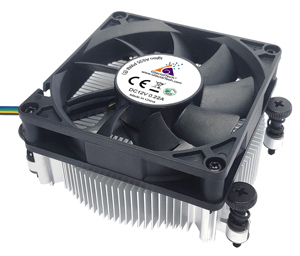

Igloo A535 |
|
|
|
| |
|
|
| Model Name |
Igloo A535 PWM(E) |
| Socket Type |
AMD AM4/AM5 (up to 65W) |
| Dimension (mm) |
97.8 ¡Ñ 88 ¡Ñ 35 |
| Weight (gram) |
237 |

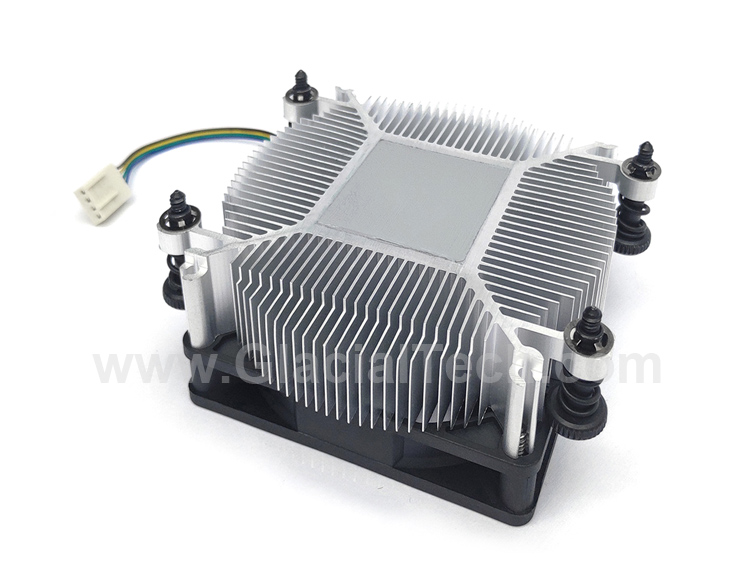

| Heatsink Material |
Aluminum |
| Fan |
Bearing Type |
Hydro-Dynamic |
| Rated voltage (VDC) |
12 |
| Dimension (mm) |
80 ¡Ñ 80 ¡Ñ 15 |
| MTBF (hour/25 °C ) |
40,000 |
| Speed (rpm) |
PWM 1000¡Ó300rpm at 25% duty ~3200¡Ó10%rpm at 100% duty
(4 pin, controllable) |
| Airflow (CFM) |
33.3 (max.) |
| Noise (dBA) |
35 (max) |
| Safety |
CE |
| Cable length(mm) |
100 ±10 |
| Interface Material |
High Efficiency Thermal Compound |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
