| DC Fan / Silent Blade |
|
Server Fan |
|
|
| |
 |
|
| |
| |
 Specifications |
|
| Dimension (mm) |
40 x 40 x 28 |
40 x 40 x 28 |
| Working Voltage (VDC) |
10.8~13.2 |
21.8~25.2 |
| Starting Voltage (VDC) |
≦7 |
≦12 |
| Rated Voltage (VDC) |
12 |
24 |
| Rated Current (AMP) |
1.2 (max.) |
0.5 (max.) |
| Input Power (W) |
14.4 (max.) |
12 (max.) |
| Bearing System |
Two ball-bearing |
Two ball-bearing |
| Fan Speed (RPM) |
22,000 |
18,000 |
| Air Volume (CFM) |
31.8 |
26.0 |
| Static Pressure (mmH2O) |
68.8 |
46.1 |
| Noise (dBA) |
57.2 |
51.8 |
| MTBF (hours/25°C) |
70,000 |
70,000 |
| Safety |
CE |
CE |
|
| |
| GlacialTech also provides customized service, the voltage, fan speed, w/wo PWM feature, IP rating, cable length, and connector type are all customized available. |
| |
| |

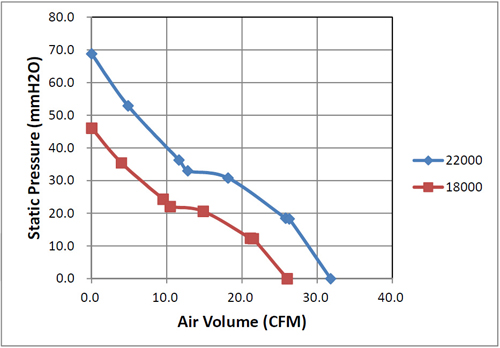

| Performance Curve |
 |
| |
| |
| |
| |
| |
|
